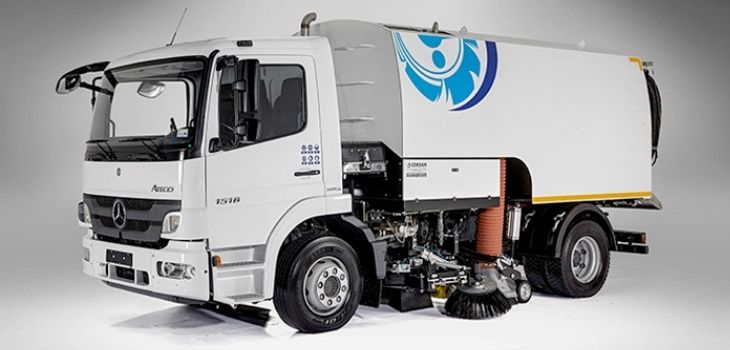

VKM 6000
Çeksan makes production of Mechanical Driven Vacuum Road Sweeping Machines (Torque Convertor or Clutch lining), and Hydraulic Driven Vacuum Road sweeping machines with chamber capacity from 4 m³ up to 10 m³.
- Our products being certified for PM 2.5 and PM10 from a premier institution - SGS Germany

What Makes Us Different :

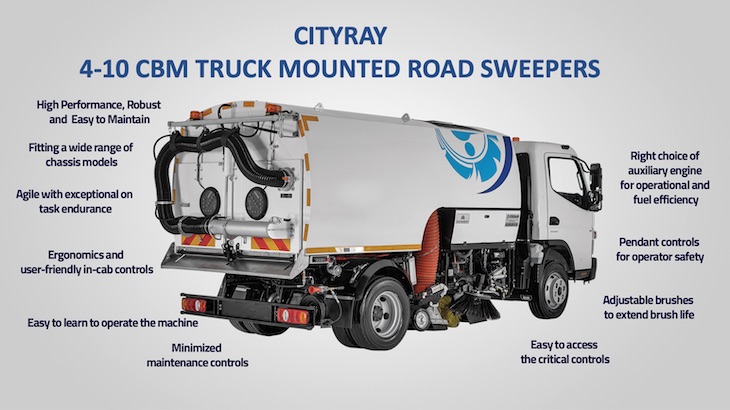

General features of Vacuum Road Sweeping Machines (VKM) are as follows:
- It provides high performance at lower cycles by the choice of correct auxiliary engine utilized on its top structure. It ensures fuel savings and more silent working environment.
- In order to maximize useful life of brush, its pressure to the surface can be adjusted. Optionally, such pressure setting can be made from cabin inside. It provides optional system reducing rotating speed of brush preventing unnecessary wear.
- In order to minimize dust in the environment, waste is humidified at correct points throughout suction line.
- Engine- fan connection is made through torque convertor in our mechanical machines; in this way, engine life is extended and maintenance costs resulting from replacement of clutch lining is prevented.
- Thanks to flexible design, top structure can be easily mounted to different chassis vehicles of different sizes.
- Thanks to user friendly control panel, operator learns using machines within a short time period.
- Water tank mounted on base of waste tank at 10 degrees of angle provides ease for discharge operation of wastes.
- Easily cleanable chamber inside grate design is developed; design of superstructure and equipments is made to minimize maintenance requirements.
Technical Specifications :
Sweep Speed (km / h) : 1-10
Sweeping Width (mm) : 2150
Sweeping Capacity (m2 / h) : 21500
Waste Tank Capacity (m3) : 6
Water Tank Capacity (liter) : 1500
Hydraulic Oil Tank Capacity (liter) : 80
Water Tank Material : Stainless Steel Hair
Machine Length (mm) : 4400
Machine Width (mm) : 2300
Machine Height (mm) : 2040
Blank Total Weight (kg) : 4300
Water Pump (bar-liter) : 20lt / min. Max.100bar
Waste Discharge Damper Angle : 55
Waste Discharge Height (mm) : 650 mm (nom)
Side Brush Diameter (mm) : 400
Medium Brush Diameter (mm) : 400
Medium Brush Length (mm) : 1240
Number of Water Nozzles : 23
Rear Suction Hose Diameter (mm) : 150
Rear Suction Hose Length (mm) : 5000
Auxiliary Motor Type : Diesel
Helper Engine Power (kW) : 75
Fan Drive Type : Mechanical
Side Suction Hose Diameter (mm) : 220
Side Brush Life (Working Hour) : 300
Medium Brush Life (Working Hour) : 150
Minimum Gross Weight (kg) : 15000
Wheel Base (mm) : 3500-3800
Rear Door Opening Angle : 85
Mesh Filter Surface Area (m2) : 1.09
Front Washing System : Optional
Dual Suction System : Optional
High Pressure Washing System : Optional
Additional Filter System : Optional
Rack Noise Level (dB) : <75 dB
Sweep Speed (km / h) : 1-10
Sweeping Width (mm) : 2150
Sweeping Capacity (m2 / h) : 21500
Waste Tank Capacity (m3) : 6
Water Tank Capacity (liter) : 1500
Hydraulic Oil Tank Capacity (liter) : 80
Water Tank Material : Stainless Steel Hair
Machine Length (mm) : 4400
Machine Width (mm) : 2300
Machine Height (mm) : 2040
Blank Total Weight (kg) : 4300
Water Pump (bar-liter) : 20lt / min. Max.100bar
Waste Discharge Damper Angle : 55
Waste Discharge Height (mm) : 650 mm (nom)
Side Brush Diameter (mm) : 400
Medium Brush Diameter (mm) : 400
Medium Brush Length (mm) : 1240
Number of Water Nozzles : 23
Rear Suction Hose Diameter (mm) : 150
Rear Suction Hose Length (mm) : 5000
Auxiliary Motor Type : Diesel
Helper Engine Power (kW) : 75
Fan Drive Type : Mechanical
Side Suction Hose Diameter (mm) : 220
Side Brush Life (Working Hour) : 300
Medium Brush Life (Working Hour) : 150
Minimum Gross Weight (kg) : 15000
Wheel Base (mm) : 3500-3800
Rear Door Opening Angle : 85
Mesh Filter Surface Area (m2) : 1.09
Front Washing System : Optional
Dual Suction System : Optional
High Pressure Washing System : Optional
Additional Filter System : Optional
Rack Noise Level (dB) : <75 dB
